Slant/Fin Deluxe Electric Boiler

Slant/Fin Deluxe Electric Boiler and mechanical panel

thumbnail image of a Slant/Fin boiler and mechanical panel

thumbnail image of mechanical panel components

thumbnail image of installed Slant/Fin boiler and mechanical panel

Product Overview

- Used in larger heating applications where electricity is the primary energy source.
- Wide range of sizes from 8 to 40 kilowatts
- Larger sizes capable of providing heat for In-Floor systems as well as domestic hot water.
- Ideal for larger homes and spaces 1,500 to 5,000+ sq. ft.

When looking for heating larger spaces Slant/Fin Deluxe Electric Boilers are the go-to for long term reliable and efficient performance. Constructed with sturdy cast iron heat exchangers and unmatched built in controls Slant/Fin boilers will undoubtedly provide years of comfort and performance. Mainly used in heating only applications some larger units can be used to provide some domestic hot water for up to a couple bathrooms as well.

view the manufacturer PDF

Call 888-650-0202 to order!

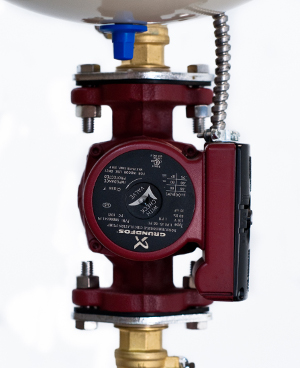

3-SPEED PUMP
Allows adjustable pump speed
- Grundfos 3-speed switch for extreme flexibility in system design
- Reliable starting torque
- Low noise
- Low energy
- Maintenance-free

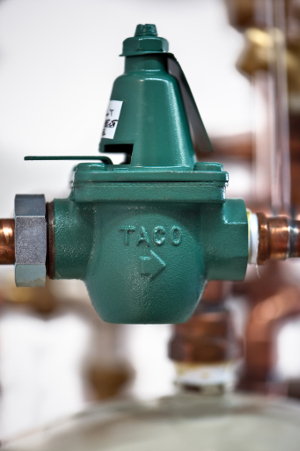

PRESSURE REDUCING VALVE
Automatically feeds water to the system

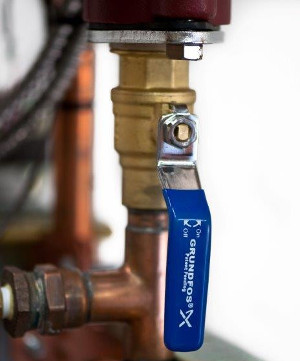

DIELECTRIC ISOLATION VALVE
Prevents water draining during service
- Full port shut-off valve
- Prevents dissimilar metal corrosion
- Eliminates air entering the system during maintenance

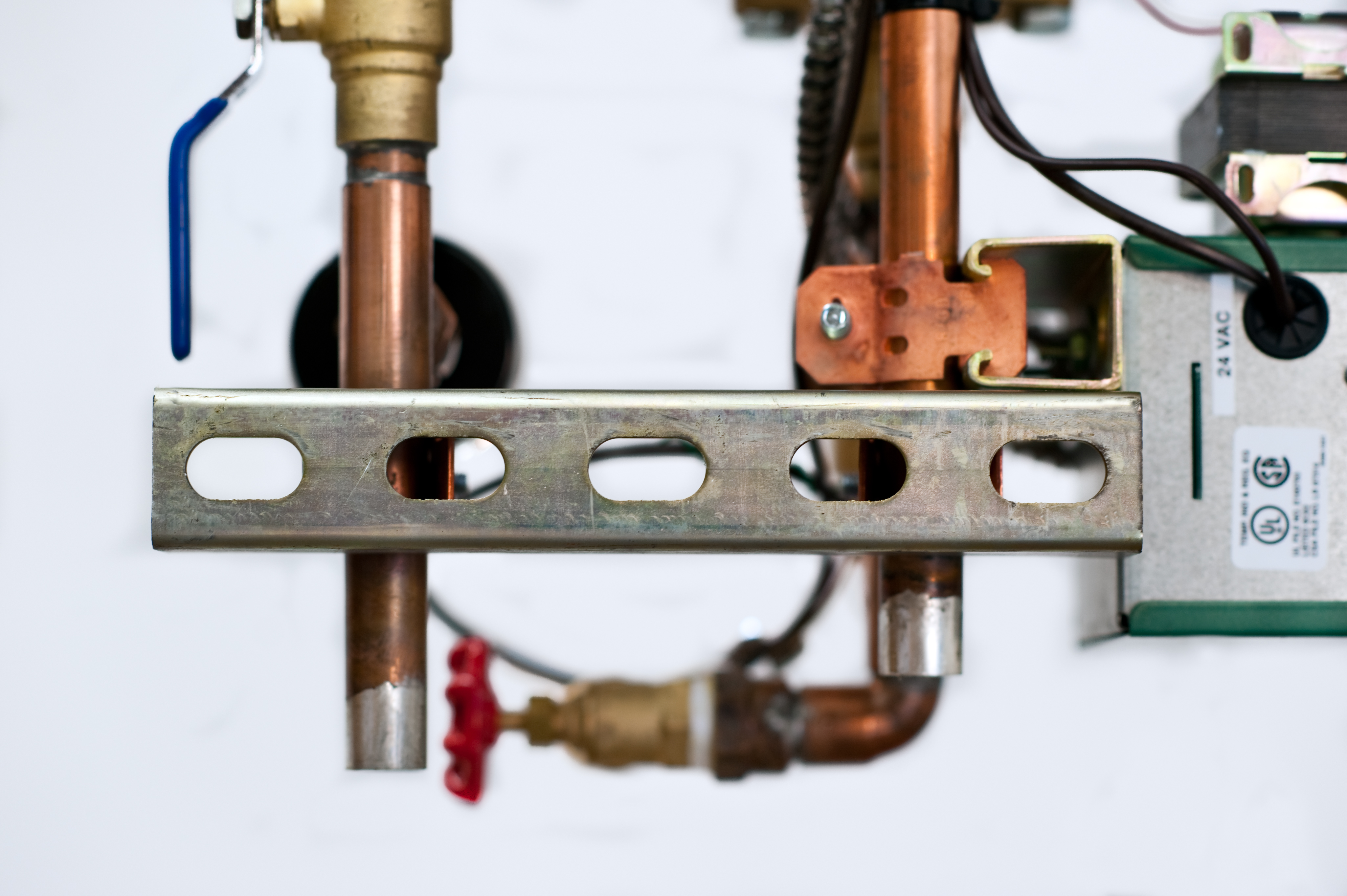

EZ MOUNT WALL BRACKET
Makes installation fast
- Flat wall mount
- Bolts securely to any solid surface
- 1/2" stand-off to accommodate power cords

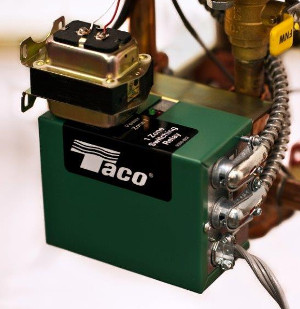

SWITCHING RELAY
zone switching and diagnostic feedback
- Taco relay facilitates multi zone switching and circulation pumping
- External indicator lights give you instant diagnostic feedback
- Universal thermostat compatibility
FULLY ASSEMBLED
Ready to be installed no soldering
- Pre-fabricated and fully assembled
- Can be installed right out of the box
- No soldering
- Compact design saves valuable wall space
- Faster installation

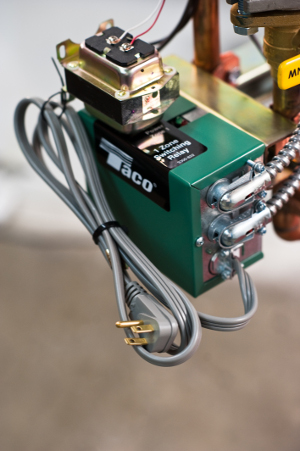

PRE-WIRED
Plugs into 110v outlet
- Panel is ready to plug into any 110v outlet
- Universal 3 prong pigtail
- PVC rubber housing
- Ground wire
- Boiler takes 240v
EXPANSION TANK
Maintains proper system pressure
- The expansion tank maintains proper pressure within the system

Grundfos 3-speed switch for extreme flexibility/reliable starting torque/low noise/low energy/maintenance free
Full port shut-off valve/prevents dissimilar metal corrosion/eliminates air entering the system during maintenance
Flat wall mount/bolts securely to any solid surface/half-inch standoff to accommodate power cords
Prefabricated & fully assembled/ can be installed right out of the box/ compact design saves space
Ready to plug into any 110v outlet/universal 3 prong pigtail/pvc rubber housing/ ground wire
Adjusts the system temperature of water to the floor to maximize efficiency & control of the system based on outdoor temperature.
Automatically feeds water to the system whenever pressure drops/ adjustable set pressure of 10 to 25 psi/built-in check to prevent emptying the system if incoming pressure fails
Greater flow sensitivity and wider adjustment range
The expansion tank maintains proper pressure within the system
industry proven cast iron heat exchanger construction
relatively compact design
multiple water temperature set-point controls
controls include outdoor reset for increased comfort and higher efficiencies
stages heating elements for precise heat delivery and higher energy savings
works in wide range of heating applications
radiant floor heating
hot water baseboards
radiators
fan-coil heaters
